Note: This studio monitor is sold as a pair
Description

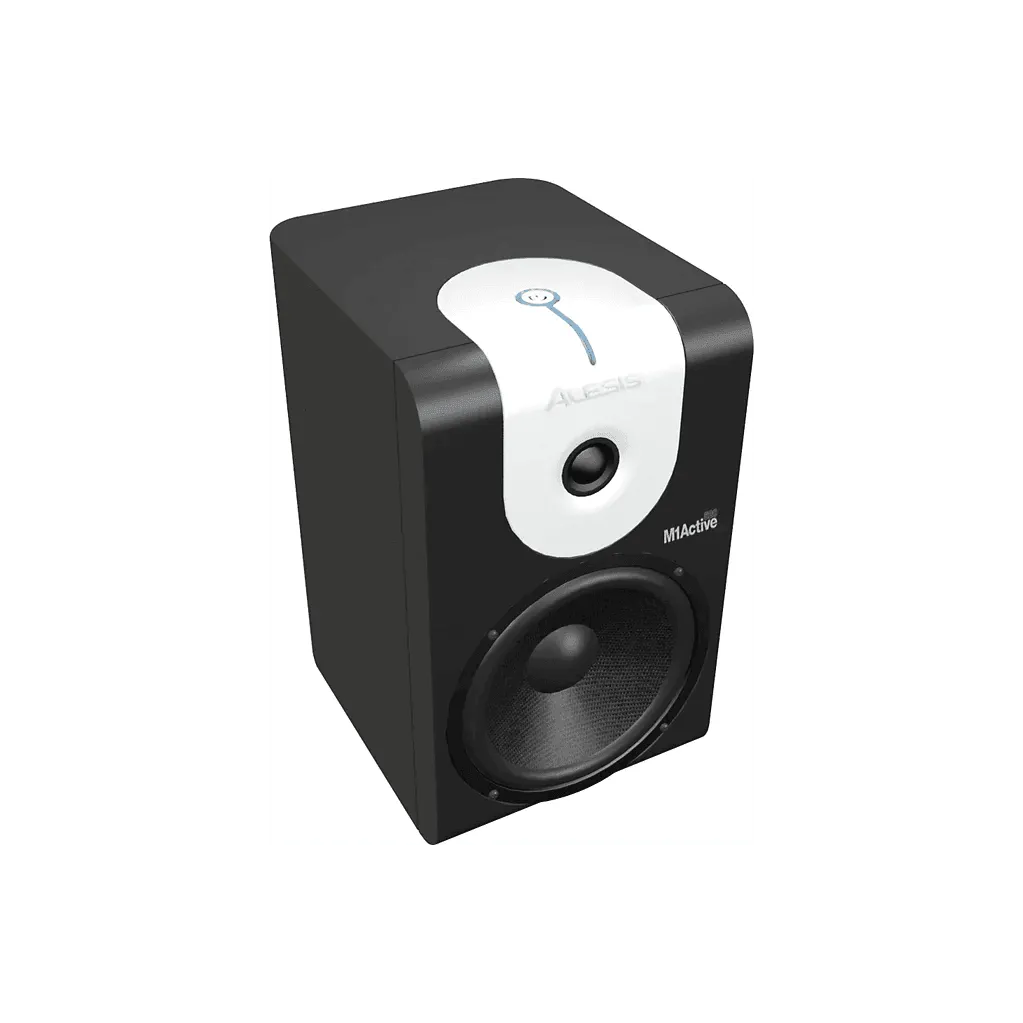

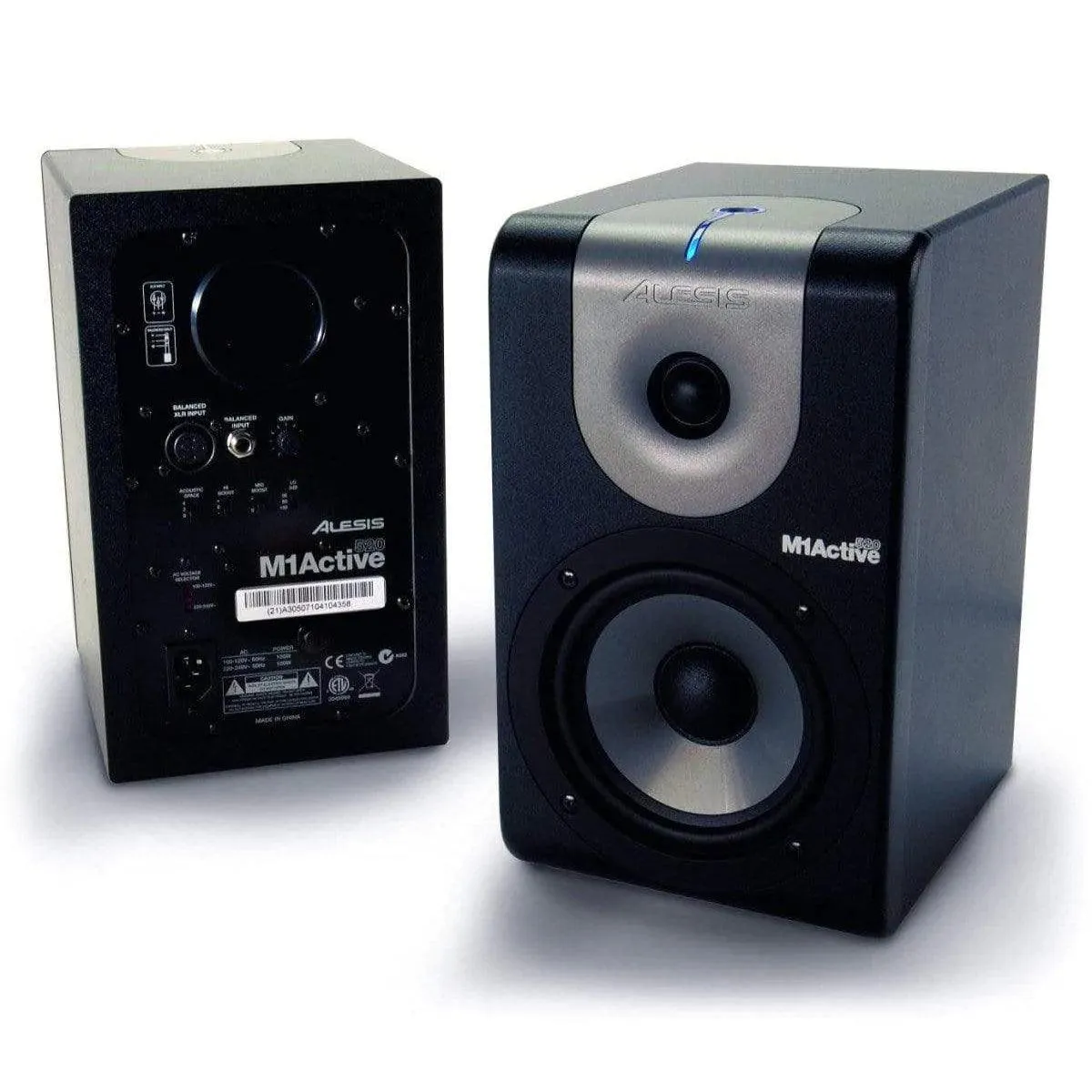

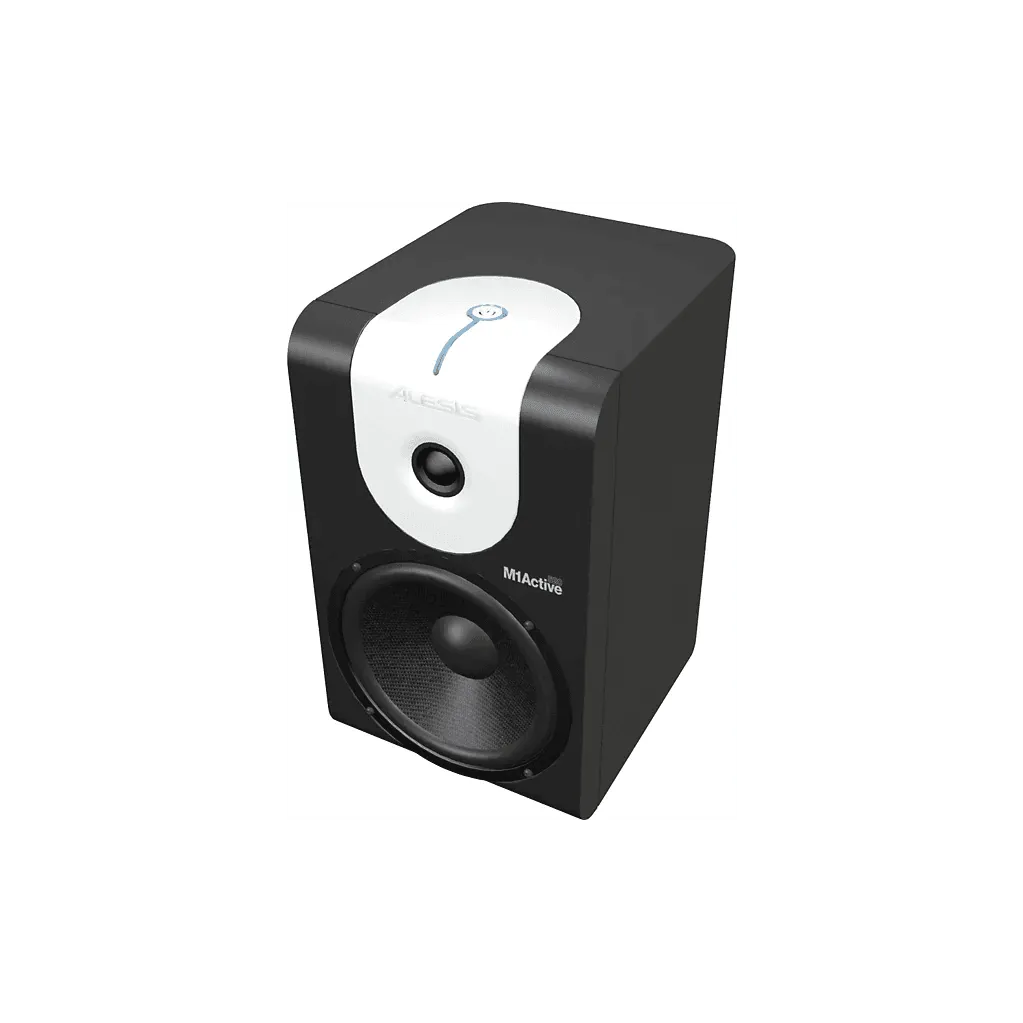

This pair of Alesis M1 Active 520 Near-Field Reference Monitors offers an incredible definition and flat frequency response with the help of high-precision drivers and a carefully designed crossover. The rear-port provides deep bass-extension and high SPL output, and the rear-mounted EQ switches allow the user to tailor the speaker to the studio environment. A 1"-thick front baffle minimizes speaker resonance and the acoustic waveguide evenly disperses high-frequency sound. The Bass Density control lets you dial in balanced sound regardless of room or placement. The Alesis M1 520 monitor's top-mounted power/clip indicator lets you know if the speaker is clipping.
FEATURES
-2-way, 75W active near-field reference monitors
-5" low-frequency driver
-1" silk dome tweeter
-Acoustic waveguide
-Low-Frequency Density switch
-Rear port design
-Hi, Mid, and Low-Frequency EQ switches
-Top-mounted Power Switch/Clip Light
-1"-thick front baffle
-Magnetically shielded
-1/4" TRS connector
-Volume control
| Tech Specs |
| Low-Frequency Driver 5" Polypropylene cone |
| Mid Frequency Driver No |
| High-Frequency Driver 1" Silk Dome Tweeter |
| LF Amplifier 50 Watts |
| HF Amplifier 25 Watts |
| Crossover Active, 2.8 kHz |
| Frequency Range 56 Hz - 20 kHz |
| Impedance 10 kOhms, Unbalanced |
| 20 kOhms, Balanced |
| Maximum Sound Pressure Level (SPL) 90 dB @ 1m |
| Controls and Indicators 1 x Gain Control Knob |
| 1 x Acoustic Space Switch |
| 1 x Hi Boost Switch |
| 1 x Mid-Boost Switch |
| 1 x Lo 3dB Roll Off Switch |
| 1 x AC Voltage Selector Switch |
| 1 x Top-Mounted Power Switch/Clip LED |
| Connectors 1 x 3-pin XLR Female, Balanced |
| 1 x 1/4" TRS/TS Phone, Bal/Unbal |
| Shielded Yes |
| Dimensions (HxWxD) 10.5 x 6.5 x 7.75" (267 x 165 x 197mm) |
| Weight 13 lb (6 kg) |
| Specialties Multi-Voltage Power Supply with Selector Switch |
| 1/4" Input with Bal/Unbal Read |
| Acoustic Space Compensator Switch for Wall or Corner Placement |
| Rear Bass Port |
| Packaging Info |
| Box Dimensions (LxWxH) 21 x 15.2 x 12.5" |
