Product Details
＋
Greenlee EK1550SLXB Description

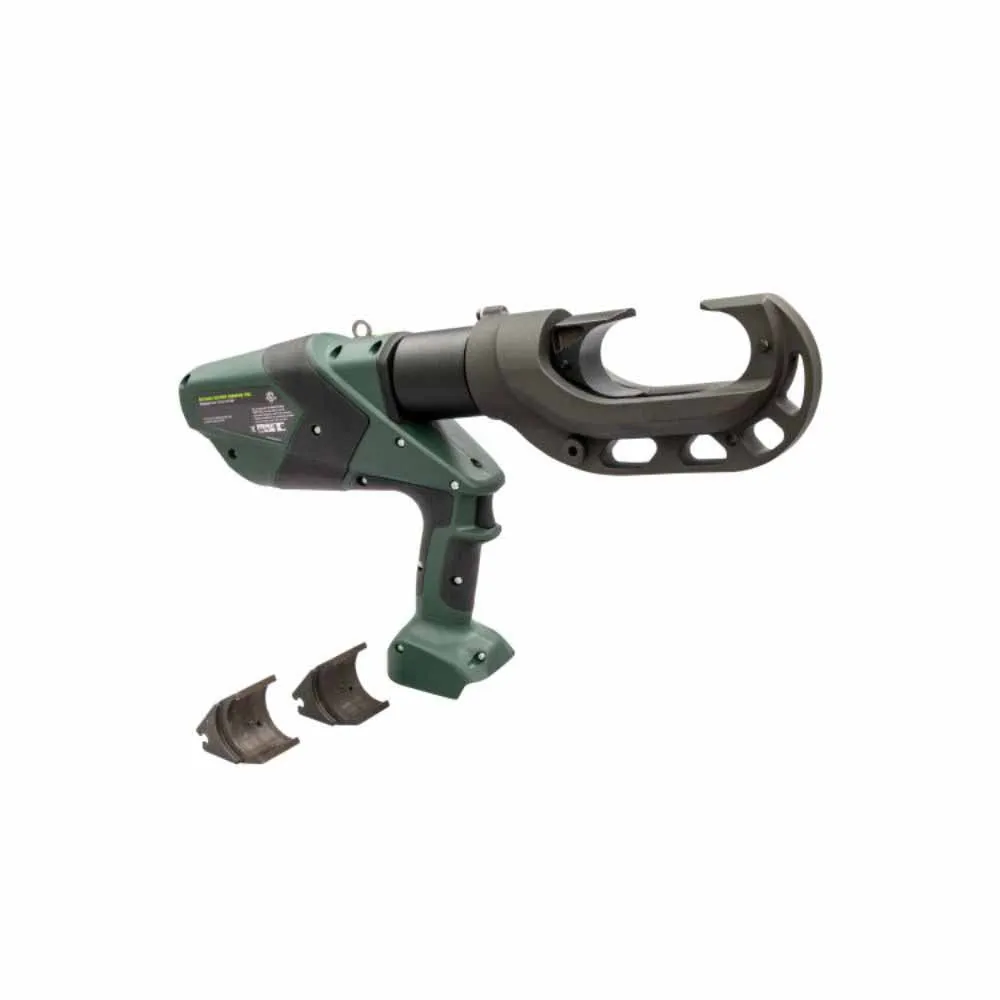

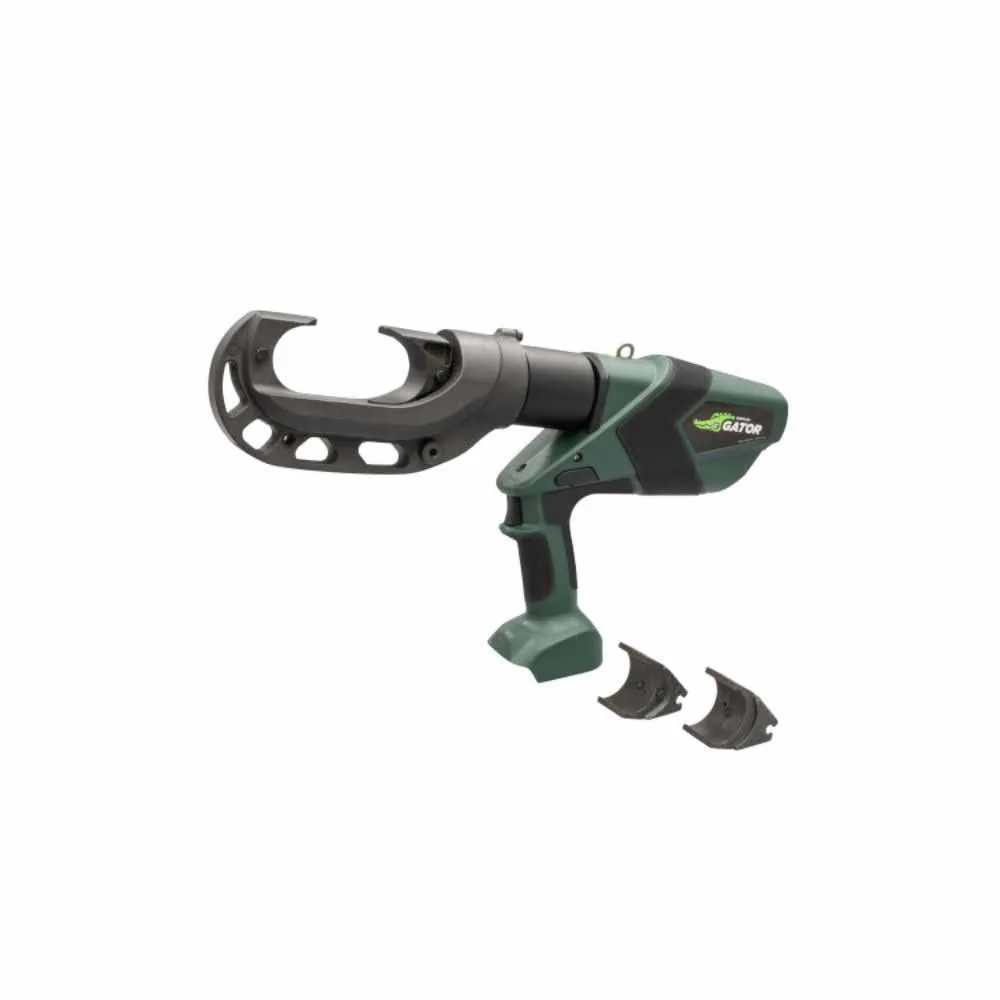

The EK1550SLX crimping tool is a battery-powered, C-head and pistol grip configured tool intended to crimp aluminum and copper connectors onto electrical cable.
Greenlee EK1550SLXB Includes
- (1) Crimper
- (1) U Die Adapter
Greenlee EK1550SLXB Features
- SLX crimping head offers over 10% reduction in weight vs previous model
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
- Two-stage hydraulic system provides fast advance and power speed, saving time
- Includes auxilary handle for easy operation and transport
- Utilizes "P" and "U" style crimping dies
- This cable crimper comes equipped with Bluetooth™ Communication
- Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
Greenlee EK1550SLXB Specifications
| Length | 19.5" |
| Width | 3" |
| Height | 12.5" |
| Crimping Force | 15 Tons (135 kN) |
| Head Rotation | 350º |
| Type | Die Style Crimper |
| Wire Size | 8 AWG - 1500 kcmil Cu |
| Wire Size | 8 AWG - 1250 kcmil Al |
| Crimping Force | 30000 lbs (135 kN) |
| Crimping Capacity | 1500 kcmil (MCM) Copper |
| Crimping Capacity | 1250 kcmil (MCM) Al |
| Connector Type | Color-Coded Lugs and Splices |
| Handle Type | Pistol Style with Over Molded Rubber Grip |
| Min Operating Temperature | 1 F / -17.22222 C |
| Max Operating Temperature | 104 F / 40 C |
| Color | Green |
| Shape | Pistol |
| Materials | Steel, Plastic, Aluminum |
| Power Source | Battery Powered |
| Capacity Max | 15" / 381 mm |
| Connectivity-1 (Bluetooth, WiFi) | Yes |
| Motor Type | DC Brushed Permanent Magnet |
| Voltage | 18V |
| Batteries Included | No |
| Batteries Required | Yes |
| Sub Brand | Gator |
| Application | 15 Ton Crimping |
| Standard | C/US UL Classified |
| Weight | 15.9 lbs |
